Single Stage Vacuum Pumps

Our single-stage vacuum pumps are designed to provide reliable and efficient vacuum generation for a wide range of applications. These robust pumps feature a simple yet effective design, making them an economical choice for various industrial, laboratory, and scientific processes.


Utilizing a single compression stage, these pumps are capable of achieving ultimate vacuum levels down to 10 microns (0.010 Torr). They are ideal for applications that require moderate vacuum levels, such as vacuum packaging, vacuum furnaces, vacuum hold-down systems, and many others.

Single Stage Pump Graph
Model
Pumping Speed (Litres/min)
Oil Capacity (Litres)
Motor Power (H.P.)
SX 50S
50
1.0
0.25
SX 100S
100
2.0
0.25
SX 200S
200
2.5
0.50
SX 325S
325
4.0
1.00
SX 600S
600
5.0
1.50
SX 1000S
1000
8.0
2.00
SX 2000S
2000
14.0
3.00
SX 3000S
3000
18.0
5.00
SX 5000S
5000
25.0
10.00
Single Stage Vacuum Pump

Double Stage Vacuum Pumps

For applications demanding higher vacuum levels, our double-stage vacuum pumps provide superior performance and efficiency. These pumps feature a two-stage compression design, allowing them to achieve significantly lower ultimate vacuum pressures compared to single-stage units.


Utilizing two consecutive compression stages, these pumps can attain ultimate vacuum levels as low as 0.001 microns (5 x 10-3 Torr). This makes them suitable for a wide range of applications that require high vacuum environments, such as vacuum coating, electron microscopy, mass spectrometry, and various scientific and industrial processes.

Double Stage Pump Graph
Model
Pumping Speed (Litres/min)
Oil Capacity (Litres)
Motor Power (H.P.)
SX 50D
50
1.0
0.25
SX 100D
100
2.5
0.50
SX 200D
200
3.0
0.50
SX 325D
325
5.0
1.00
SX 600D
600
7.0
2.00
SX 1000D
1000
10.0
3.00
SX 2000D
2000
17.0
5.00
SX 3000D
3000
20.0
7.50
SX 5000D
5000
30.0
12.50

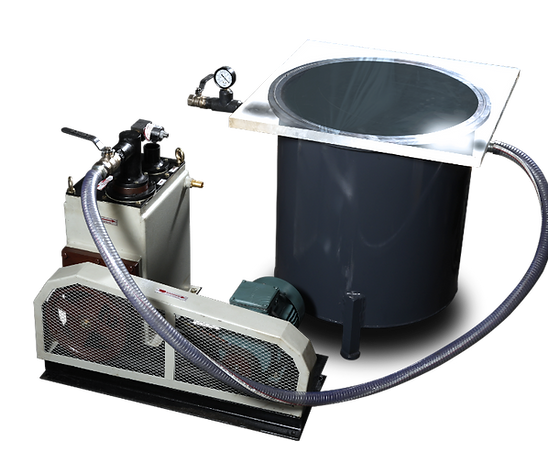

Double Stage Vacuum Pump with tank

Vacuum Pumps System

Our vacuum pump systems are carefully engineered and assembled, combining a robust vacuum pump with essential components such as an intake filter, vacuum gauge and vacuum reservoir.


The integrated design ensures seamless operation and simplified installation, reducing the need for separate component sourcing and assembly.

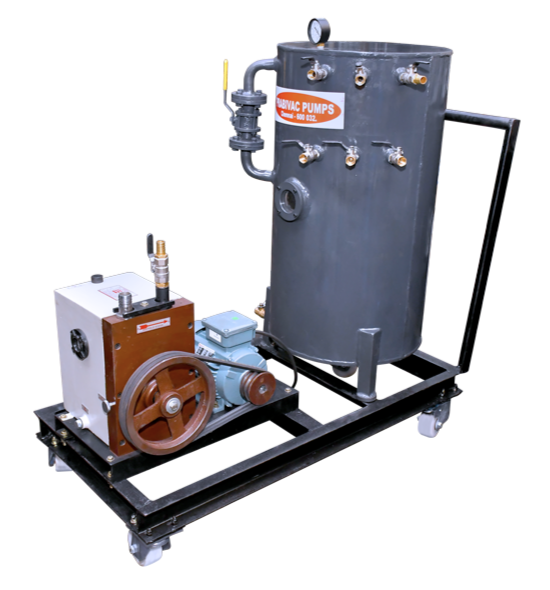

Vacuum pump system

Portable Vacuum Pumps

Portable vacuum pump

Our portable vacuum pumps offer the convenience of on-the-go vacuum generation for various applications. Compact and lightweight, these pumps are designed to be easily transported and operated in multiple locations, making them ideal for field service, maintenance, and remote work.

Oil Less Vacuum Pumps

Oil less vacuum pump

Unlike conventional oil-sealed pumps, these advanced pumps operate without the use of lubricating oils, eliminating the risk of oil contamination. They are ideal for applications that require oil-free operation, such as semiconductor manufacturing, instrumentation, and packaging of sensitive products.

we offer fully customized vacuum pump solutions engineered to meet your specific demands. Contact us today, and let's discuss how we can craft the perfect vacuum pump for your application.
